Barche a vela radiocomandate e accessori

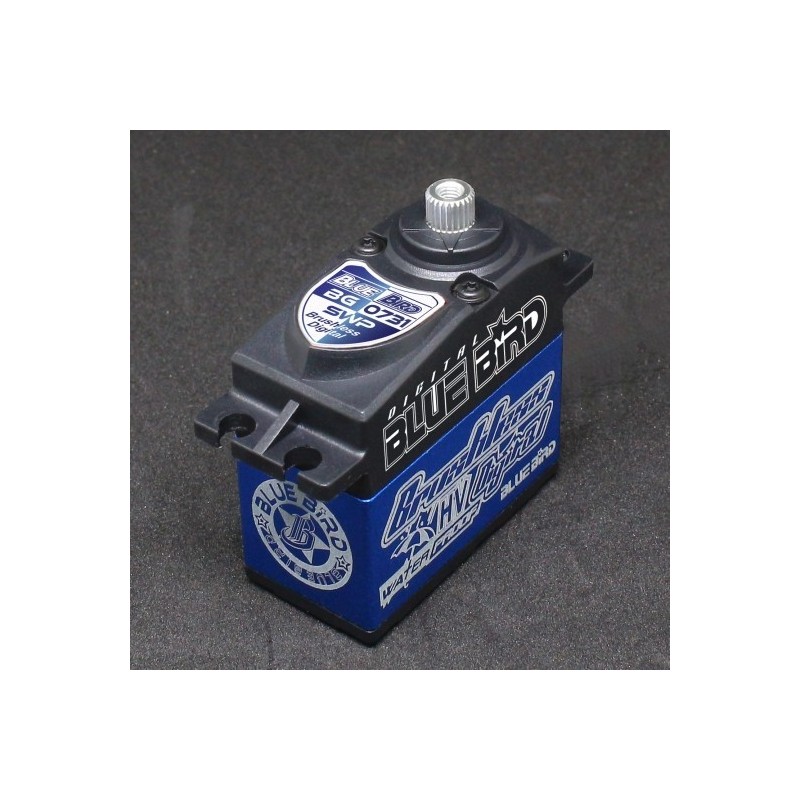

Servo BG-0731SWP SAIL WINCH
90,00 €
Politiche per la sicurezza
Politiche per le spedizioni
Politiche per i resi
|
Sail Winch for Larger Boat, Yacht. |
Specifications
|
Torque At 6.0V |
25.6 kg-cm / 355.6 oz-in |
|
Torque At 7.4V |
31.8 kg-cm / 441.7 oz-in |
|
Torque At 8.4V |
35.7 kg-cm / 495.9 oz-in |
|
Speed At 6.0V |
0.09 sec / 60° |
|
Speed At 7.4V |
0.07 sec / 60° |
|
Speed At 8.4V |
0.06 sec / 60° |
Power Supply
|
Operating Voltage Range |
4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe ) |
Control Specification
|
Control System |
Digital Controller |
|
Rotating Direction |
Clockwise / When Pulse Traveling 900u ~ 2100u second |
|
Operating Travel |
Total Maximum around 2160° ( 6 Turns / Rotations ) |
Mechanical Specifications
|
Ball Bearing |
Dual ball bearings with 1 piece of oil seal |
|
Gear |
Durable Steel Alloy Metal Gears |
|
Motor |
High-Premium Brushless Motor |
|
Horn / Gear Spline |
25 Teeth ( Same as F-Type ) |
Physical Specifications
|
Dimension (mm) |
40.6 x 20.6 x 39.7 mm / 1.6 x 0.81 x 1.56 in |
|
Weight (gram) |
72.5 ± 1 grams / 2.55 oz |
BG-0731SWP
